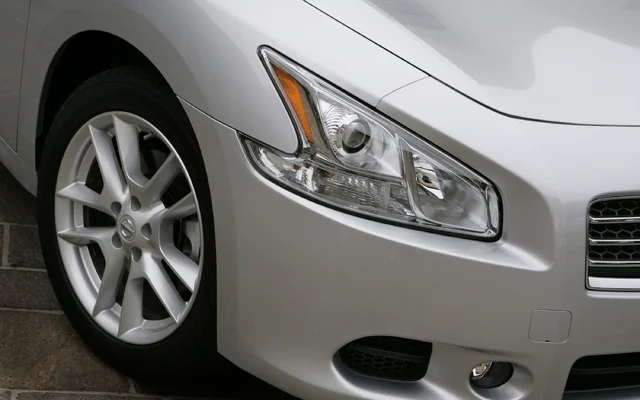

Introduction to Adjusting Headlights on the 2010 Nissan Maxima SV

Adjusting Headlights on 2010 Nissan Maxima SV: Properly aligned headlights are essential for safe driving, especially during nighttime or in low-visibility conditions. In the case of the 2010 Nissan Maxima SV, headlight alignment plays a significant role in how well the road ahead is illuminated. Misaligned headlights not only reduce your visibility but also pose a risk to other drivers on the road. Whether you’ve recently replaced your headlight bulbs or have noticed that your beam pattern is off-center or uneven, it’s crucial to understand how to adjust your headlights correctly.

This guide will walk you through everything you need to know about headlight adjustment on a 2010 Maxima SV. From understanding the symptoms of misalignment to completing the procedure safely and effectively, this article provides all the details you’ll need.

When and Why You Should Adjust Your Maxima’s Headlights

Identifying Misalignment Issues in Headlights

One of the first signs that your headlights may need adjustment is poor road visibility. If your low beams seem to light up the treetops rather than the pavement or one side of the road is significantly brighter than the other, this may indicate vertical or horizontal misalignment. Other common issues include the beam pattern appearing too low, causing a dark and narrow field of vision, or too high, leading to glare that blinds oncoming drivers. In some cases, you may find that drivers frequently flash their high beams at you at night, which could be a sign that your headlights are aimed too high.

What Causes Headlight Misalignment in a 2010 Nissan Maxima SV

Over time, regular wear and tear can cause your headlight aim to shift. Common causes include hitting potholes, minor front-end accidents, or changes in your vehicle’s suspension. Even something as simple as replacing a bulb without reinstalling it correctly can cause the light beam to deviate from its proper angle. Suspension upgrades or load variations in your trunk can also affect the balance and tilt of the vehicle, further impacting the direction of your headlights.

Why Timely Adjustment is Important

Driving with misaligned headlights can compromise your safety and the safety of others. Low-aiming lights limit your reaction time in low-light conditions, while high-aiming beams can dazzle drivers in oncoming lanes. Misalignment may also lead to a failed vehicle inspection in regions where headlight aim is tested. Keeping your headlights properly aligned helps ensure a clear, focused beam pattern, providing optimal visibility for night driving and harsh weather conditions.

Preparation and Tools for Headlight Adjustment

Essential Tools You’ll Need to Get Started

Before adjusting the headlights, it’s important to prepare the right environment and tools. You’ll need a Phillips screwdriver or an 8mm socket wrench, a measuring tape, masking tape, and access to a flat vertical wall such as a garage door. The process also requires level ground and a space long enough to position the vehicle at a consistent distance from the wall.

Preparing Your 2010 Nissan Maxima SV for the Adjustment Process

Before making any changes, ensure your vehicle is in the proper condition. The fuel tank should be at least half full, and the tires should be inflated to their recommended PSI levels. Remove any heavy cargo from the trunk and ensure that no extra weight is distributed unevenly across the vehicle. Make sure the headlight lenses are clean and free of debris or oxidation, as foggy lenses can distort the beam pattern even if the alignment is correct.

Locating the Adjustment Screws on Your Vehicle

On the 2010 Maxima SV, the headlight assembly contains built-in adjusters that control vertical and sometimes horizontal aim. The vertical adjuster is typically located on the top or back side of the headlight unit, and turning this screw raises or lowers the light beam. Horizontal adjustment, if available, is usually found near the outer edge of the headlight housing. However, many modern vehicles like the Maxima limit horizontal adjustments, as the manufacturer sets it during assembly.

How to Adjust the Headlights of the 2010 Nissan Maxima SV

Setting Up the Environment and Positioning the Vehicle

To begin the adjustment, park the vehicle on a level surface about 25 feet away from a flat wall. The vehicle should face the wall directly and be centered. With your vehicle in position, turn on the low beam headlights. Then, use masking tape to create two horizontal and vertical reference lines on the wall. The horizontal line should align two inches below the center of each headlight’s height from the ground. The vertical lines should correspond to the center point of each headlight.

Adjusting the Vertical Alignment of the Headlights

Once the reference grid is marked, it’s time to start adjusting. Open the hood and locate the vertical adjustment screw. Turning the screw clockwise will raise the beam, while counterclockwise will lower it. The goal is to align the top edge of the most intense part of the beam so that it rests directly below the horizontal tape line. Do this for both headlights, ensuring a symmetrical beam height for each side. The low beams should produce a cutoff line just below the marked tape to avoid dazzling oncoming drivers.

Checking and Adjusting Horizontal Aim if Possible

If your Maxima model allows horizontal adjustment, you can slightly modify the beam left or right using the horizontal screw. This step may not be necessary if the beams are already centered, but if one beam is off to the side, you can gently re-center it by turning the adjuster screw. As mentioned earlier, some 2010 Maxima SV models may not have an accessible horizontal adjuster due to factory calibration.

Final Testing and On-Road Validation

Once adjustments are made, close the hood and test the new alignment on the road. Drive in a dark area with minimal street lighting to see how far ahead the beams illuminate. Properly adjusted headlights should light the road evenly and clearly without illuminating trees, signs, or oncoming traffic’s windshields. If necessary, fine-tune the screws slightly to get a more precise aim.

Maintenance Tips and Final Recommendations

Keeping your headlights properly aligned requires occasional maintenance. It’s good practice to check alignment every six months or after any maintenance involving the suspension or front bumper. Additionally, if you install LED or HID conversion kits, rechecking the alignment is essential, as the beam patterns of these bulbs differ from stock halogens.

Regular cleaning of the headlight lenses can also improve clarity and brightness. If your lenses appear yellowed or foggy, using a headlight restoration kit can significantly enhance both the appearance and function of your headlights. Remember, brighter doesn’t always mean better; the goal is focused and controlled light aimed precisely where it’s needed.

If you’re ever in doubt about the correct aim or encounter resistance while adjusting, visiting a professional mechanic or using a headlight alignment machine at a service center may provide the most accurate results. However, with the right knowledge and a bit of patience, DIY headlight adjustment on the 2010 Nissan Maxima SV is completely achievable and well worth the effort.
